Designed and Developed/Assembled state-of-the-art DLP system along with the motion control and sensors integrated

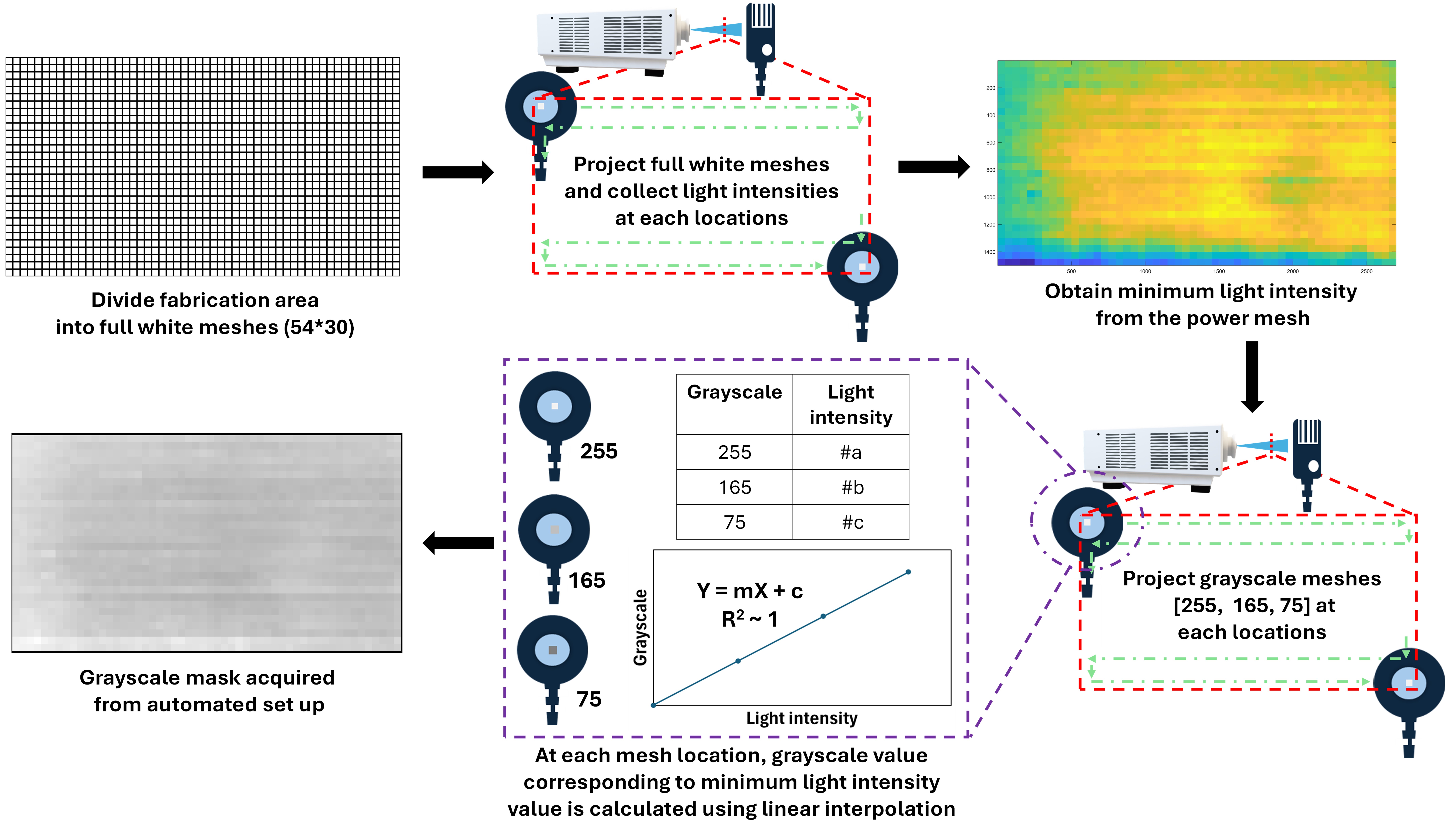

Developed the workflow using LabVIEW to acquire grayscale mask automatically
Non-uniform illumination at different power levels and acquired grayscale masks

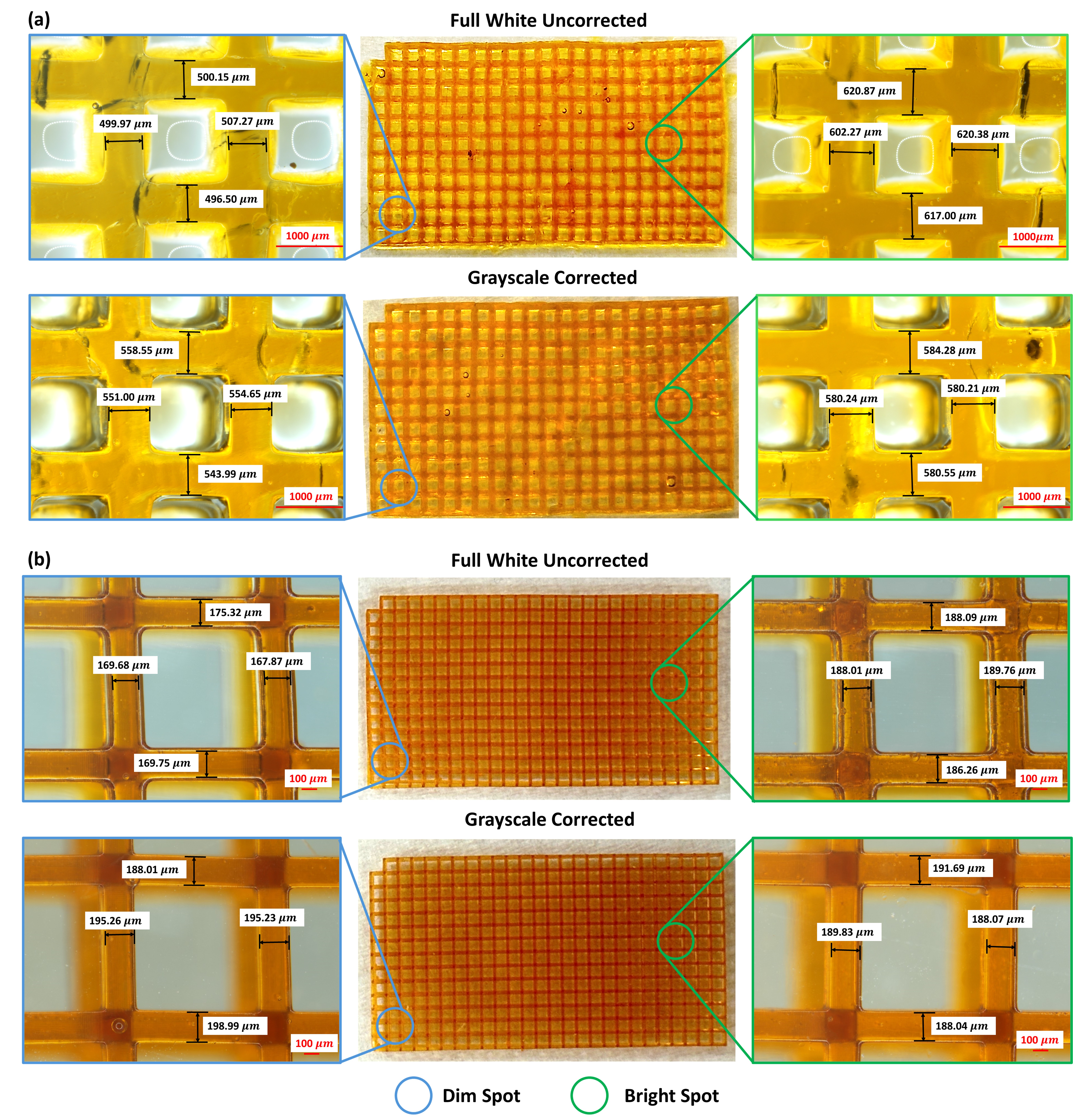

Main result showing improvement in uniformity of dimensions
For more details
Published work: Automated Grayscale Modulation to Enhance DLP Fabrication Accuracy
